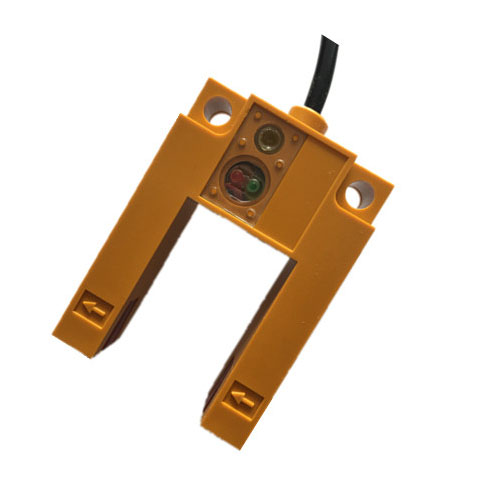

Built-in Photoelectric Sensor for G52-U Amplifier
Category: Photoelectric Sensor
Hotline: +86-577-62731262
View My Inquiry Basket
Add to Inquiry Basket
Print This Page
E-Mail To Us
Bookmark
Send Inquiry
| Detection mode | Slot model (Slot width: 30mm) |
|
|||
| Output mode | NPN | PNP |
|
|
|
|
DC Power |
NO | G52-U30NK | G52-U30PK |
|
|
| NC | G52-U30NB | G52-U30PB |
|
|
|
| NO+NC | G52-U30NH | G52-U30PH |
|
|
|
| Relay contact | |||||
| AC Power | Relay contact | ||||
| Two-wire system NO | |||||
| Two-wire system NC | |||||
| Detecting distance | |||||
| Output current | The transistor output current is 200mA | ||||
| Supply voltage | DC10-30V+10% pulsating(P-P) below 10% | ||||
| Current consumption | below 40mA | ||||
| Detected objects | Above 2×3 of the black mark on transparent body, opaque body. | ||||
| Angle of direction | - | ||||
| Responce time | Below 1ms for (DC power) | ||||
| Sensitivity adjustment | The adjustable button is offered | ||||
| Light source | Infrared, red, green | ||||
| Ambient illumination | The illumination of lighted side is below 3000IX (electric incandescent lamp) | ||||
| Ambient temperature | In the opetation: -25℃-+55℃ (unfrozen), while in the state of rest:-30℃-+70℃ | ||||
| Housing material | Metal | ||||
| Cable length | 2m (can be added to 100m) | ||||
| Protection degree | IP67 | ||||
