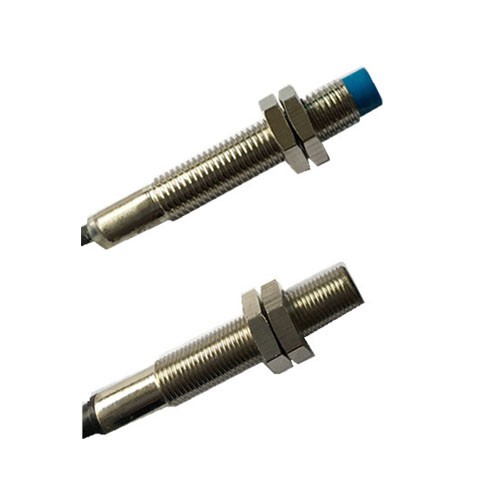

| Detected Distance Sn | 1mm | 2mm | 1mm | 2mm | ||
| Setting Distance Sn | 0-0.8mm | 0-1.6mm | 0-0.8mm | 0-1.6mm | ||
| Standard Detected Object A3 Steel | 6×6×1mm³ | 6×6×1mm³ | 6×6×1mm³ | 6×6×1mm³ | ||
| Installation Mode | Flush type | Not flush type | Flush type | Not flush type | ||
| DC power | NPN | NO | JM8L-F1NK | JM8L-Y2NK | JM8L-F1NKE | JM8L-Y2NKE |
| NC | JM8L-F1NB | JM8L-Y2NB | JM8L-F1NBE | JM8L-Y2NBE | ||
| NO/NC | ||||||
| PNP | NO | JM8L-F1PK | JM8L-Y2PK | JM8L-F1PKE | JM8L-Y2PKE | |
| NC | JM8L-F1PB | JM8L-Y2PB | JM8L-F1PBE | JM8L-Y2PBE | ||
| NO/NC | ||||||
| Two-wire system NO | JM8L-F1TK | JM8L-Y2TK | JM8L-F1TKE | JM8L-Y2TKE | ||
| Two-wire system NC | JM8L-F1TB | JM8L-Y2TB | JM8L-F1TBE | JM8L-Y2TBE | ||
| AC power | Two-wire system NO | |||||
| Two-wire system NC | ||||||
| Three-wire system NO/NC | ||||||
| Supply voltage | DC10-30V | |||||
| Current consumption | NPN/PNP Transistor 10...15mA, DC two-wire ≤ 0.8mA | |||||
| Output current | NPN/PNP Transistor ≤ 200mA, DC two-wire 60...80mA | |||||
| Output voltage drop | NPN/PNP Transistor ≤ 1.5V, DC two-wire ≤ 7V | |||||
| Response frequency | NPN/PNP Transistor 400...800Hz, DC two-wire 200Hz | |||||
| Detected objection | Metal | |||||
| Housing material | Brass, nickel-plated | |||||
| Ambient temperature | -25~70℃ | |||||
| Insulation resistance | ≥ 30MΩ above | |||||
| Protection degree | IP67 | |||||
