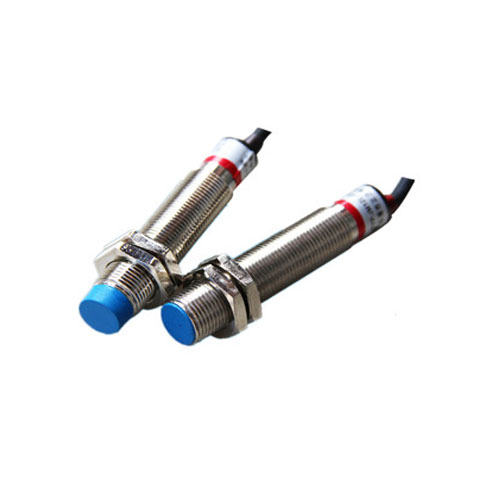

| Detected Distance Sn | 2mm | 4mm | 2mm | 4mm | ||
| Setting Distance Sn | 0-1.6mm | 0-3.2mm | 0-1.6mm | 0-3.2mm | ||
| Standard Detected Object A3 Steel | 12×12×1mm³ | 12×12×1mm³ | 12×12×1mm³ | 12×12×1mm³ | ||
| Installation Mode | Flush type | Not flush type | Flush type | Not flush type | ||
| DC power | NPN | NO | JM12L-F2NK | JM12L-Y4NK | JM12L-F2NKE | JM12L-Y4NKE |
| NC | JM12L-F2NB | JM12L-Y4NB | JM12L-F2NBE | JM12L-Y4NBE | ||
| NO/NC | JM12L-F2NH | JM12L-Y4NH | JM12L-F2NHE | JM12L-Y4NHE | ||
| PNP | NO | JM12L-F2PK | JM12L-Y4PK | JM12L-F2PKE | JM12L-Y4PKE | |
| NC | JM12L-F2PB | JM12L-Y4PB | JM12L-F2PBE | JM12L-Y4PBE | ||
| NO/NC | JM12L-F2PH | JM12L-Y4PH | JM12L-F2PHE | JM12L-Y4PHE | ||
| Two-wire system NO | JM12L-F2TK | JM12L-Y4TK | JM12L-F2TKE | JM12L-Y4TKE | ||
| Two-wire system NC | JM12L-F2TB | JM12L-Y4TB | JM12L-F2TBE | JM12L-Y4TBE | ||
| AC power | Two-wire system NO | JM12L-F2AK | JM12L-Y4AK | JM12L-F2AKE | JM12L-Y4AKE | |
| Two-wire system NC | JM12L-F2AB | JM12L-Y4AB | JM12L-F2ABE | JM12L-Y4ABE | ||
| Three-wire system NO/NC | ||||||
| Supply voltage | DC10-30V, AC90-250V | |||||
| Current consumption | NPN/PNP Transistor 10...15mA, DC two-wire ≤ 0.8mA, AC ≤ 2mA | |||||
| Output current | NPN/PNP Transistor ≤ 200mA, DC two-wire 60...80mA, AC ≤ 300mA | |||||
| Output voltage drop | NPN/PNP Transistor ≤ 1.5V, DC two-wire ≤ 7V, AC ≤ 8V | |||||
| Response frequency | NPN/PNP Transistor 400...800Hz, DC two-wire 200Hz, AC 10...15Hz | |||||
| Detected objection | Metal | |||||
| Housing material | Metal | |||||
| Ambient temperature | -25~70℃ | |||||
| Insulation resistance | ≥ 30MΩ above | |||||
| Protection degree | IP67 | |||||
