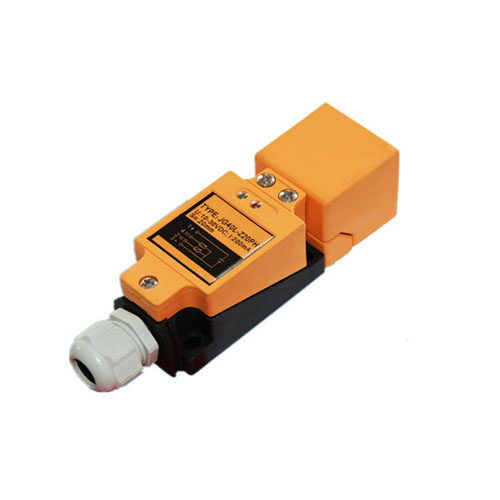

| Detected Distance Sn | 20mm | |||||
| Setting Distance Sn | 0-16mm | |||||
| Standard Detected Object A3 Steel | 60×60×1mm³ | |||||
| Installation Mode | Not flush type | |||||
| DC power | NPN | NO | JG40L-Z20NK | |||
| NC | JG40L-Z20NB | |||||
| NO/NC | JG40L-Z20NH | |||||
| PNP | NO | JG40L-Z20PK | ||||
| NC | JG40L-Z20PB | |||||
| NO/NC | JG40L-Z20PH | |||||
| Two-wire system NO | JG40L-Z20TK | |||||
| Two-wire system NC | JG40L-Z20TB | |||||
| AC power | Two-wire system NO | JG40L-Z20AK | ||||
| Two-wire system NC | JG40L-Z20AB | |||||
| Three-wire system NO/NC | ||||||
| Supply voltage | DC10-30V, AC90-250V | |||||
| Current consumption | NPN/PNP Transistor 10...15mA, DC two-wire ≤ 0.8mA, AC ≤ 2mA | |||||
| Output current | NPN/PNP Transistor ≤ 200mA, DC two-wire 60...80mA, AC ≤ 300mA | |||||
| Output voltage drop | NPN/PNP Transistor ≤ 1.5V, DC two-wire ≤ 7V, AC ≤ 8V | |||||
| Response frequency | NPN/PNP Transistor 400...800Hz, DC two-wire 200Hz, AC 10...20Hz | |||||
| Detected objection | Metal | |||||
| Housing material | ABS Resin | |||||
| Ambient temperature | -25~70℃ | |||||
| Insulation resistance | ≥ 30MΩ above | |||||
| Protection degree | IP67 | |||||
